Kitmaster Model Railways

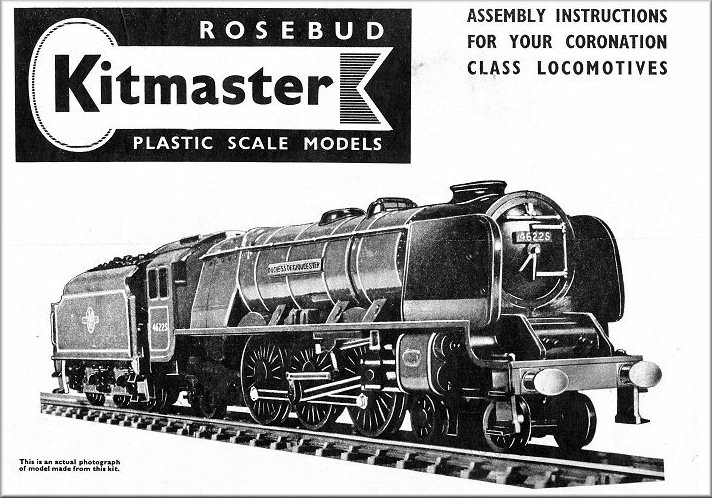

The earlier kit instruction sheets had a picture of an 'actual' model

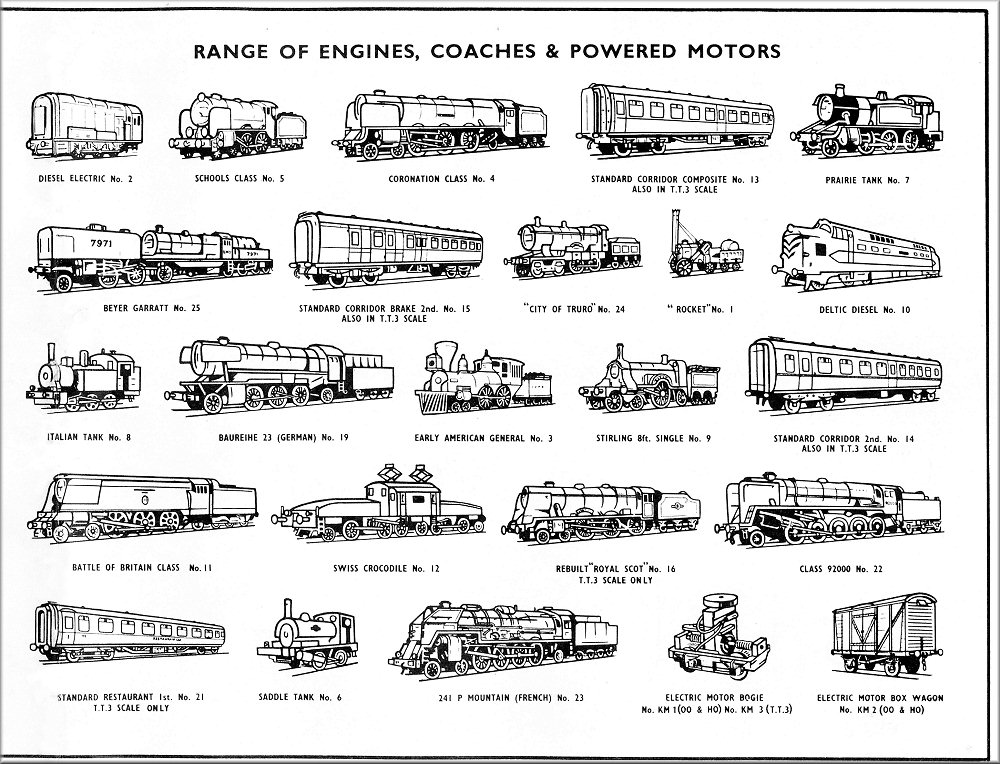

Part of a Kit Instruction Sheet showing the stock available at that time

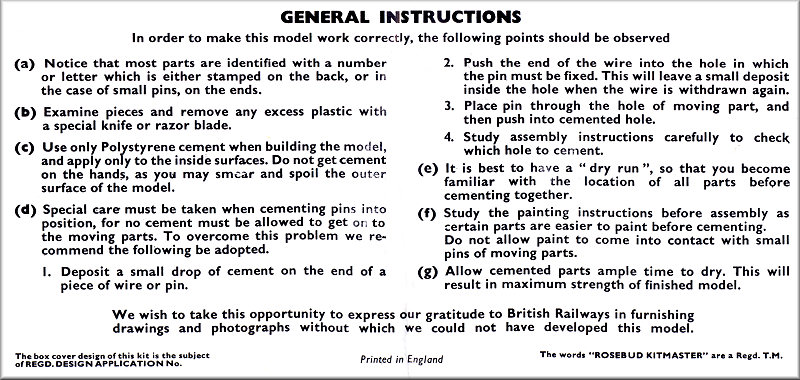

The illustrations below show the three main elements of the Kit instructions:
The central image is a description of the subject of the kit. The left hand image is an 'exploded' view of the kit showing its constituent parts. The right hand image is part of the very large Multi-lingual 'how to build' sheet.
Please click on images for the full size picture
